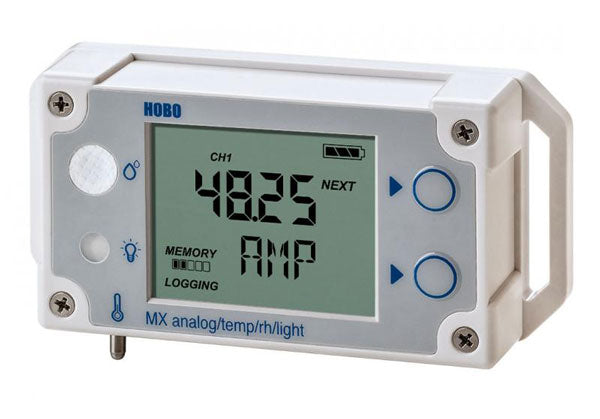

The HOBO MX1104 multi-channel data logger measures and transmits temperature, relative humidity, and light intensity data wirelessly. Additionally, it features an external analog input to attach a variety of other sensors.
This self-contained, Bluetooth-enabled wireless data logger allows users to conveniently access data using their mobile devices or a Windows computer. With Onset's free HOBOconnect app available for iOS, users can access the logger's data at any time within a 100-foot range via Bluetooth Low Energy (BLE) technology. The logger offers a suite of functionalities: it allows for configuration, data readout, graphical data viewing, operational status checks of loggers, alarm notifications configuration, and data file sharing, all without the need for dedicated equipment other than a mobile device or laptop.
For those seeking remote data access, the MX Gateway can be added, providing access to the recorded data in Onset’s cloud-based HOBOlink® software.
This versatile tool ensures efficient data logging and remote monitoring capabilities, all streamlined for user convenience.
Documentation
Quick Start GuideUser Manual
Highlighted Features
- Bluetooth communication for wireless data offload
- 16-bit resolution for highly-accurate measurements
- Stores 1.9 million measurements for longer deployments between offloads
- New Self-Describing sensors with automatic configuration for fast deployment
- Compatible with existing sensors for a wide range of indoor monitoring
- Audible and visual LCD-screen alarms notify you if the sensor becomes unplugged or a reading exceeds set thresholds
Specifications
| Specification | Value |
|---|---|
| Temperature Sensor (MX1104) | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.20°C from 0° to 50°C (±0.36°F from 32° to 122°F) |
| Resolution | 0.002°C at 25°C (0.004°F at 77°F) |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor (MX1104) | |
| Range | 0% to 100% at -20° to 70°C (-4° to 158°F); conditions above 95% may temporarily increase error |
| Accuracy | ±2.5% from 10% to 90% (typical) to max ±3.5% incl. hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time (MX1104) | |
| Temperature | 11 minutes in airflow of 1 m/s (2.2 mph) |
| RH | 30 seconds to 90% in airflow of 1 m/s (2.2 mph) |
| Light Sensor (M1104) | |
| Range | 0 to 167,731 lux (15,582 lum/ft^2) |
| Accuracy | ±10% typical for direct sunlight |
| Logger with Cable Type | |
| SD-MA-420 or CABLE-4-20mA | 0 to 20.1 mA; ±0.001 mA ±0.2% of reading; 0.3 µA |
| SD-VOLT-2.5 or CABLE-2.5-STEREO | 0 to 2.5 V; ±0.1 mV ±0.1% of reading; 40 µV |
| SD-VOLT-05 or CABLE-ADAP5 | 0 to 5.0 V; ±0.2 mV ±0.3% of reading; 80 µV |
| SD-VOLT-10 or CABLE-ADAP10 | 0 to 10 V; ±0.4 mV ±0.3% of reading; 160 µV |
| SD-VOLT-24 or CABLE-ADAP24 | 0 to 24 V; ±1.0 mV ±0.3% of reading; 384 µV |
| Logger | |
| Operating Range | -20° to 70°C (-4° to 158°F) |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or set logging period |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Type | Two AAA 1.5 V alkaline batteries, user replaceable |
| Battery Life | Varies with conditions, see description above |
| Memory | 4 MB (1.9 million measurements, max) |
| Full Memory Download Time | 4 to 15 minutes depending on the mobile device; distance may affect time |
| LCD | Visible from 0° to 50°C (32° to 122°F); may react slowly or go blank outside this range |
| Size | 11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.) |
| Weight | 123 g (4.34 oz) |
| Environmental Rating | IP54 |
Applications
In what environment does this data logger operate?
This data logger operates in an indoor environment.
What measurements does this data logger support?
The MX1104 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Dew Point, Differential Pressure, Gauge Pressure, Kilowatts (kW), Light Intensity, Relative Humidity and Temperature
