Water Level Sensor Module For RX3000
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Water Level Sensor Module For RX3000
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

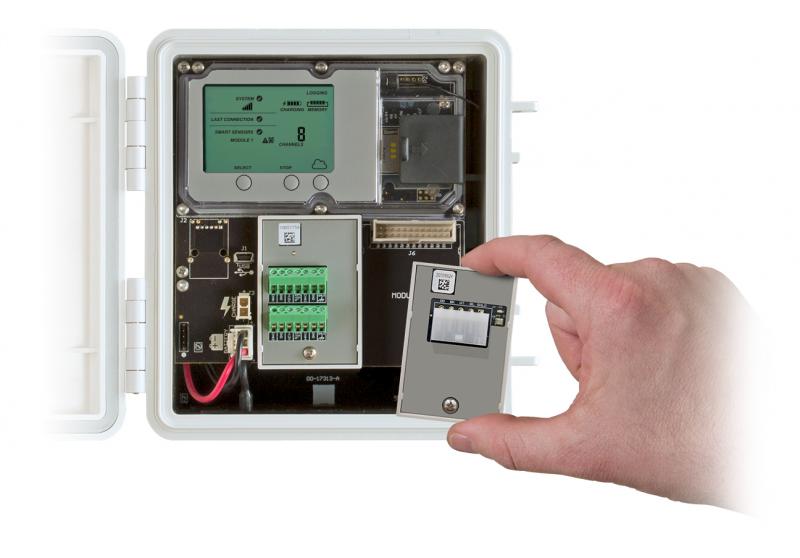

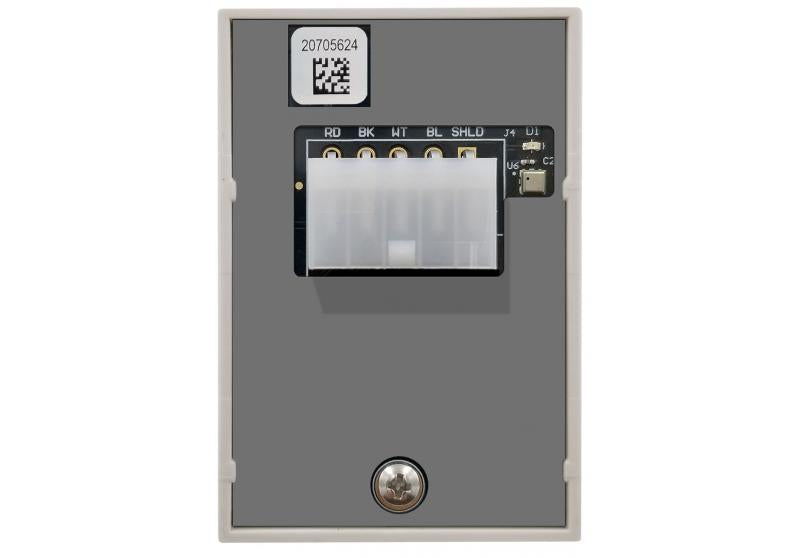

The RX3000 Water Level Sensor Module (RXMOD-W1) offers users the ability to monitor water level, pressure, and temperature, as well as barometric pressure, with the HOBO RX3000 Remote Monitoring Station.
It is configured through HOBOlink, Onset's cloud software. For water level applications, a HOBO RX3000 station, water level sensor cable (CABLE-RWLMOD), and water level sensor (MX2001-0X-Ti-S) are required.
Documentation
Data Sheet
Highlighted Features
- Integrated barometric pressure sensor
- Plug-and-play remote water level and flow monitoring
Specifications
| Specification | Value (Metric and Imperial) |
|---|---|
| Barometric Pressure | |
| Operation Range | 66 to 107 kPa (9.57 to 15.52 psia) |
| Temperature Calibrated Range | -20 to 50°C (-4 to 122°F) |
| Accuracy | ±0.2 kPa (±0.029 psi) over full temperature range at fixed pressure; max error ±0.5% FS |
| Water Level Accuracy* | Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water; Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water |
| Resolution | <0.01 kPa (0.0015 psi) |
| Response Time | <1 second at a stable temperature |
| Stability (Drift) | <0.01 kPa (0.0015 psi) per year |
| Note | Water level system accuracy is the sum of the barometric accuracy and the water level sensor accuracy |
| Pressure (Absolute) and Water Level Measurements | Various specifications for different models (MX2001-01-S and MX2001-01-Ti-S, MX2001-02-S, MX2001-03-S, MX2001-04-S and MX2001-04-Ti-S) are provided with different values. |
| Water Level Sensor and Cable | |
| Dimensions | Sensor: 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length; Cable: 0.47 cm ±0.03 (0.185 inches ±0.01) diameter, 0.2 to 400 m (0.65 to 1,312 ft) length |
| Weight | Various weights for stainless sensor, titanium sensor, and cable |
| Materials | Different materials for stainless sensor, titanium sensor, and cable |
Applications
In what environment does this accessory operate?
This accessory operates in outdoor and underwater environments.
What measurements does this accessory support?
The RXMOD-W1 accessory supports the following measurements: Barometric Pressure, Differential Pressure, Water Flow, Water Level, and Water Temperature
