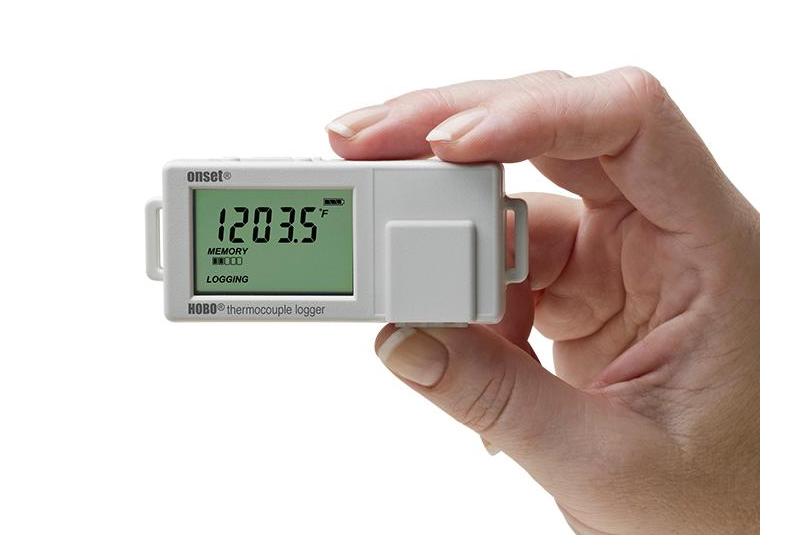

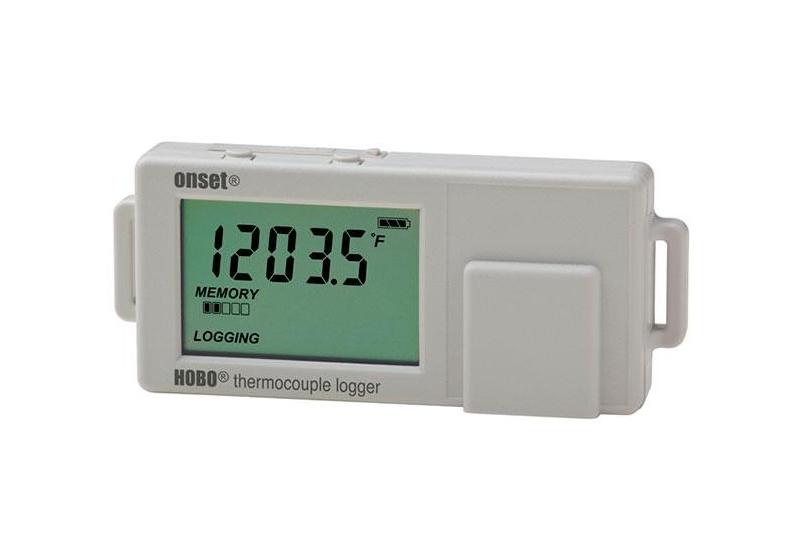

HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger

R 4,874.24
SKU: UX100-014M

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Thermocouple Type:Type T (-260°C to 400°C)
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger

Type T (-260°C to 400°C)

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

A single-channel thermocouple data logger to measure and record temperature in indoor environments. Designed for a broad range of monitoring applications - from industrial process monitoring to concrete maturity testing - this logger provides exceptional flexibility by accepting J, K, T, E, R, S, B or N-type thermocouple probes (sold separately).

Onset also offers a four-channel thermocouple data logger, the HOBO UX120-014M.

Documentation

Data Sheet
 User Manual



Highlighted Features

  • High-accuracy J, K, T, E, R, S, B, N thermocouple readings
  • Easy-to-view LCD display
  • Large memory capacity
  • Visual high & low alarm thresholds
  • Burst and Statistics logging modes
  • Record ambient temperature with an internal thermistor

Specifications

Thermocouple:

Type Range Accuracy Resolution
J -210°C to 760°C ±0.6°C (±1.08°F) ± probe 0.03°C (0.06°F)
K -260°C to 1,370°C ±0.7°C (±1.26°F) ± probe 0.04°C (0.07°F)
T -260°C to 400°C ±0.6°C (±1.08°F) ± probe 0.02°C (0.03°F)
E -260°C to 950°C ±0.6°C (±1.08°F) ± probe 0.03°C (0.05°F)
R -50°C to 1,550°C ±2.2°C (±3.96°F) ± probe 0.08°C (0.15°F)
S -50°C to 1,720°C ±2.2°C (±3.96°F) ± probe 0.08°C (0.15°F)
B 550°C to 1,820°C ±2.5°C (±4.5°F) ± probe 0.1°C (0.18°F)
N -260°C to 1,300°C ±1.0°C (±1.8°F) ± probe 0.06°C (0.11°F)



Internal 10K Thermistor (Temperature)

Plot A Time Accuracy

  • Range: Logging: -20°C to 70°C (-4°F to 158°F)
  • Accuracy: ±0.21°C from 0°C to 50°C (±0.38°F from 32°F to 122°F), see Plot A
  • Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
  • Drift: <0.1°C (0.18°F) per year

Logger:

  • Logger Operating Range:

    • Logging: -20°C to 70°C (-4°F to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0°C to 50°C (32°F to 122°F)
    • Launch/Readout: 0°C to 50°C (32°F to 122°F) per USB specification

  • Resolution: 22-bit

  • Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

  • Logging Modes: Normal, Burst, or Statistics

  • Memory Modes: Wrap when Full or Stop when Full

  • Start Modes: Immediately, Push Button, Date & Time or Next Interval

  • Stop Modes: When Memory Full, Push Button, or Date & Time

  • Restart Mode: Push Button

Time Accuracy - UX120-014M

  • Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot B

  • Battery Life: 1 year, typically with a logging rate of 1 minute and sampling interval of 15 seconds or greater

  • Battery Type: One 3V CR2032 lithium battery

  • Memory: 512 KB (208,076 measurements, maximum)

  • Download Type: USB 2.0 interface

  • Full Memory Download Time: 1 minute, 30 seconds

  • LCD: LCD is visible from 0°C to 50°C (32°F to 122°F); the LCD may react slowly or go blank in temperatures outside this range

  • Size: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)

  • Environmental Rating: IP50

Application

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The UX100-014M data logger supports the following measurement: Temperature
