Volt AC Transmitter Sensor

R 5,006.59
SKU: T-CON-ACT-150

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Select Range:0 to 150 Volts AC
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Volt AC Transmitter Sensor

0 to 150 Volts AC

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

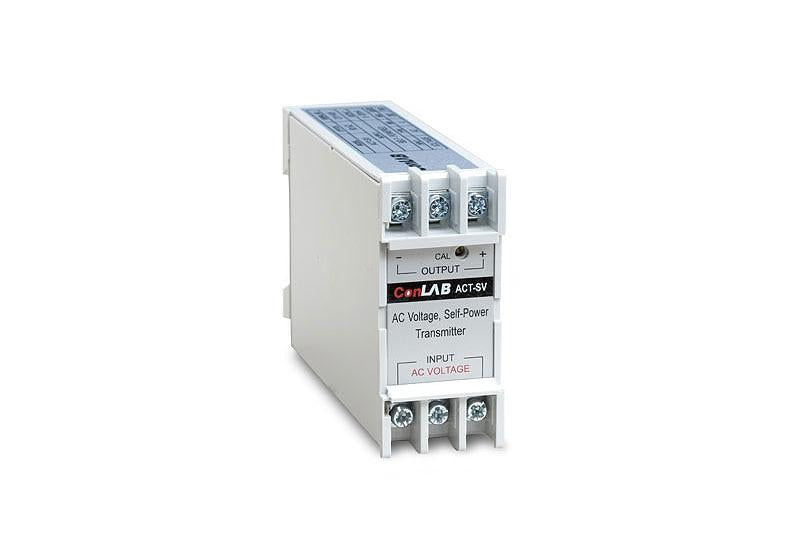

A self-powered transformer for monitoring sine wave and single-phase AC voltage; compatible with HOBO MX1100, UX120-006M, ZW series, and U series data loggers.

The AC Voltage transmitter is a self-powered transformer for monitoring sine wave and single-phase AC voltage. Available in two ranges: 0 to 150 Volts AC, and 0 to 300 Volts AC.

Requirements for use with specific data loggers:

  • HOBO MX1100 series: a 4-20mA input cable (SD-MA-420)
  • HOBO U12, UX120-006M, or ZW series: a 4-20mA input cable (CABLE-4-20mA)



IMPORTANT INFORMATION

Refer to the data logger product pages to ensure you have the proper interfaces (modules, adapter, etc.) to deploy this sensor.

Documentation

Connection Instructrions



Highlighted Features

  • Available Ranges: Two voltage ranges – 0 to 150 Volts AC and 0 to 300 Volts AC.
  • Self-Powered: No need for an external power source.
  • Sensor Accuracy: Less than ±0.1% of span for 20% to 120% of range, and ±0.25% for 10% of range.
  • Over Range and Over Load: +20% over range and +40% overload capabilities.
  • Output: 0–20 mA output signal.
  • Fast Response Time: <240 msec to 90% of the target value.
  • Operating Conditions: -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing.
  • Housing and Protection: Plastic polycarbonate with IP-50 for the box and IP-10 for the terminals.
  • Mounting: Standard 35mm DIN rail.
  • Country of Origin: Israel.
  • Special Requirements: Compatible with specific HOBO data loggers via a 4-20mA input cable.
  • Safety Note: This should be used only by qualified personnel.

Specifications

Specification Details
Ranges 0-150 and 0-300 volts RMS
Sensor Accuracy < ±0.1% of span (20% to 120% of range) ±0.25% of span (10% of range)
Over Range +20% of span
Over Load +40% of span
Frequency 60 Hz AC
Supply Self-powered
Output 0–20 mA
Response Time to 90% <240 msec
Operating Conditions -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing
Housing Plastic polycarbonate
Protection Level - Box: According to IP-50 DIN 40050<br> - Terminals: According to IP-10 DIN 40050
Mounting Standard 35mm DIN rail

Requirements

Requirement Details
For U12 & H8 Loggers Input Cable (Part # CABLE-4-20mA)
For HOBO Energy Logger FlexSmart Analog Module (Part # S-FS-CVIA)

Applications

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-CON-ACT-300 sensor supports the following measurement: AC Voltage
