Onset

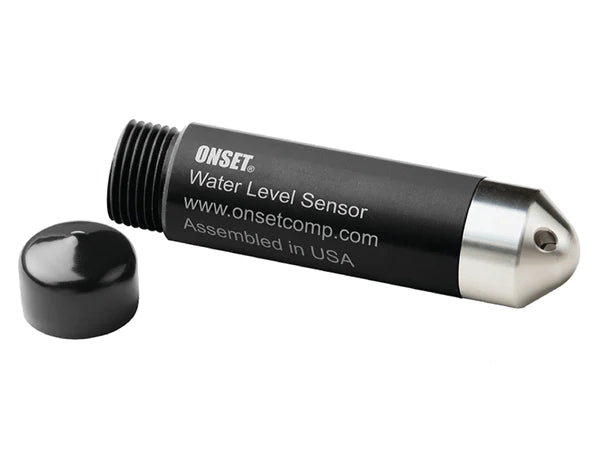

Water Level Sensor

R 12,185.60
SKU: MX2001-04-SS-S

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Select Option:4m (13’) Stainless Steel
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Water Level Sensor

4m (13’) Stainless Steel

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

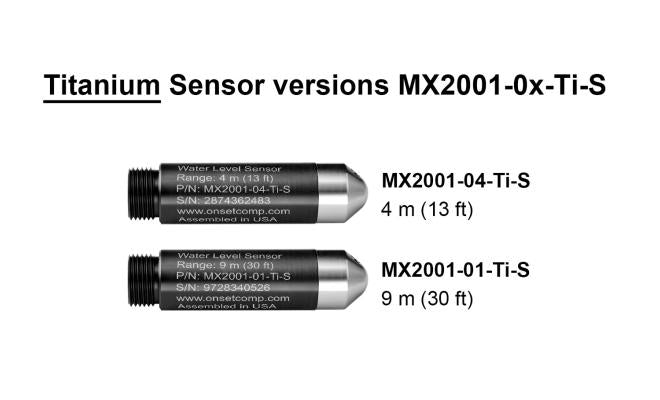

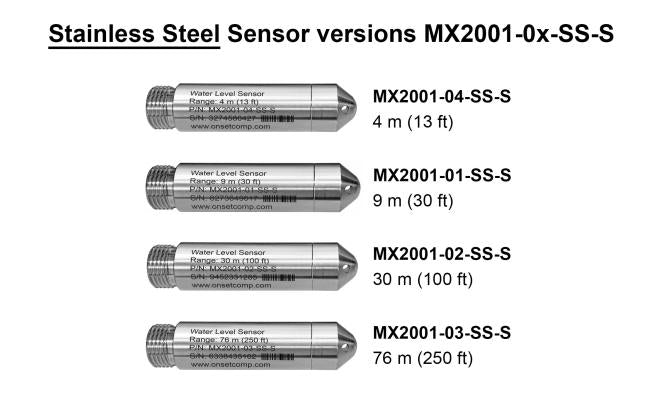

For use with HOBO MX2001 Bluetooth water level loggers, HOBO MicroRX Water Level Stations (RX2103 and RX2104), and the HOBO RX3000 Remote Monitoring Station, for accurate water pressure, temperature, and water level measurements. These sensors are available in four depth ranges and come in stainless steel or titanium (recommended for use in saltwater) models.

Documentation

Quick Start Guide



Highlighted Features

  • Non-vented design reduces maintenance
  • The durable, ceramic sensor can withstand freezing
  • 3-point NIST-traceable calibration certificate

What's In The Box

  • HOBO MX2001-S water level sensor
  • Protective cap

Specifications

MX2001-01-SS-S & MX2001-01-Ti-S

Specification Value
Operation Range 0 to 207 kPa (0 to 30 psia); 0 to 9 m (0 to 30 ft) at sea level; 0 to 12 m (0 to 40 ft) at 3,000 m altitude
Factory Calibrated Range 69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F)
Burst Pressure 310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy Typical: 0.05% FS, 0.5 cm (0.015 ft) water; Max: 0.1% FS, 1.0 cm (0.03 ft) water
Raw Pressure Accuracy 0.3% FS, 0.62 kPa (0.09 psi) max error
Resolution <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
Pressure Response Time (90%) <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight Stainless: 141.4 g (4.99 oz) in air, 53.9 g (1.9 oz) in freshwater; Titanium: 80 g (2.83 oz) in air, 37 g (1.3 oz) in freshwater
Wetted Materials Stainless: Stainless steel housing, Viton & Buna-N O-rings, ceramic sensor in stainless steel end cap; Titanium: Acetal housing, PVC end cap, Viton & Buna-N O-rings, ceramic sensor in Titanium end cap; Cable: Polycarbonate top end connector, PVC end cap, nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating IP68

MX2001-02-SS-S

Specification Value
Operation Range 0 to 400 kPa (0 to 58 psia); 0 to 30.6 m (0 to 100 ft) at sea level; 0 to 33.6 m (0 to 111 ft) at 3,000 m altitude
Factory Calibrated Range 69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F)
Burst Pressure 500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy Typical: 0.05% FS, 1.5 cm (0.05 ft) water; Max: 0.1% FS, 3.0 cm (0.1 ft) water
Raw Pressure Accuracy 0.3% FS, 1.20 kPa (0.17 psi) max error
Resolution <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%) <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight 141.4 g (4.99 oz) in air, 53.9 g (1.9 oz) in freshwater
Wetted Materials Stainless steel housing, Viton & Buna-N O-rings, ceramic sensor in stainless steel end cap; Cable: Polycarbonate top end connector, PVC end cap, nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating IP68

MX2001-03-SS-S

Specification Value
Operation Range 0 to 850 kPa (0 to 123.3 psia); 0 to 76.5 m (0 to 251 ft) at sea level; 0 to 79.5 m (0 to 262 ft) at 3,000 m altitude
Factory Calibrated Range 69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F)
Burst Pressure 1,200 kPa (174 psia) or 112 m (368 ft) depth
Water Level Accuracy Typical: 0.05% FS, 3.8 cm (0.125 ft) water; Max: 0.1% FS, 7.6 cm (0.25 ft) water
Raw Pressure Accuracy 0.3% FS, 2.55 kPa (0.37 psi) max error
Resolution <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water
Pressure Response Time (90%) <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight 141.4 g (4.99 oz) in air, 53.9 g (1.9 oz) in freshwater
Wetted Materials Stainless steel housing, Viton & Buna-N O-rings, ceramic sensor in stainless steel end cap; Cable: Polycarbonate top end connector, PVC end cap, nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating IP68

MX2001-04-SS-S & MX2001-04-Ti-S

Specification Value
Operation Range 0 to 145 kPa (0 to 21 psia); 0 to 4 m (0 to 13 ft) at sea level; 0 to 7 m (0 to 23 ft) at 3,000 m altitude
Factory Calibrated Range 69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F)
Burst Pressure 310 kPa (45 psia) or 18 m (60 ft) depth
Water Level Accuracy Typical: 0.075% FS, 0.3 cm (0.01 ft) water; Max: 0.15% FS, 0.6 cm (0.02 ft) water
Raw Pressure Accuracy 0.3% FS, 0.43 kPa (0.063 psi) max error
Resolution <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%) <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight Stainless: 141.4 g (4.99 oz) in air, 53.9 g (1.9 oz) in freshwater; Titanium: 80 g (2.83 oz) in air, 37 g (1.3 oz) in freshwater
Wetted Materials Stainless: Stainless steel housing, Viton & Buna-N O-rings, ceramic sensor in stainless steel end cap; Titanium: Acetal housing, Viton & Buna-N O-rings, ceramic sensor in Titanium end cap; Cable: Polycarbonate top end connector, PVC end cap, nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating IP68

Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S)

Specification Value
Operation Range -20 to 50C (-4 to 122F)
Accuracy 0.44C from 0 to 50C (0.79F from 32 to 122F)
Resolution 0.1C at 25C (0.18F at 77F)
Response Time (90%) 5 minutes in water (typical)
Stability (Drift) 0.1C (0.18F) per year
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Weight Stainless: 141.4 g (4.99 oz) in air, 53.9 g (1.9 oz) in freshwater; Titanium: 80 g (2.83 oz) in air, 37 g (1.3 oz) in freshwater
Wetted Materials Stainless: Stainless steel housing, Viton & Buna-N O-rings, ceramic sensor in stainless steel end cap; Titanium: Acetal housing, Viton & Buna-N O-rings, ceramic sensor in Titanium end cap; Cable: Polycarbonate top end connector, PVC end cap, nylon collar nut(s), Viton O-rings, polyurethane jacket
Environmental Rating IP68
