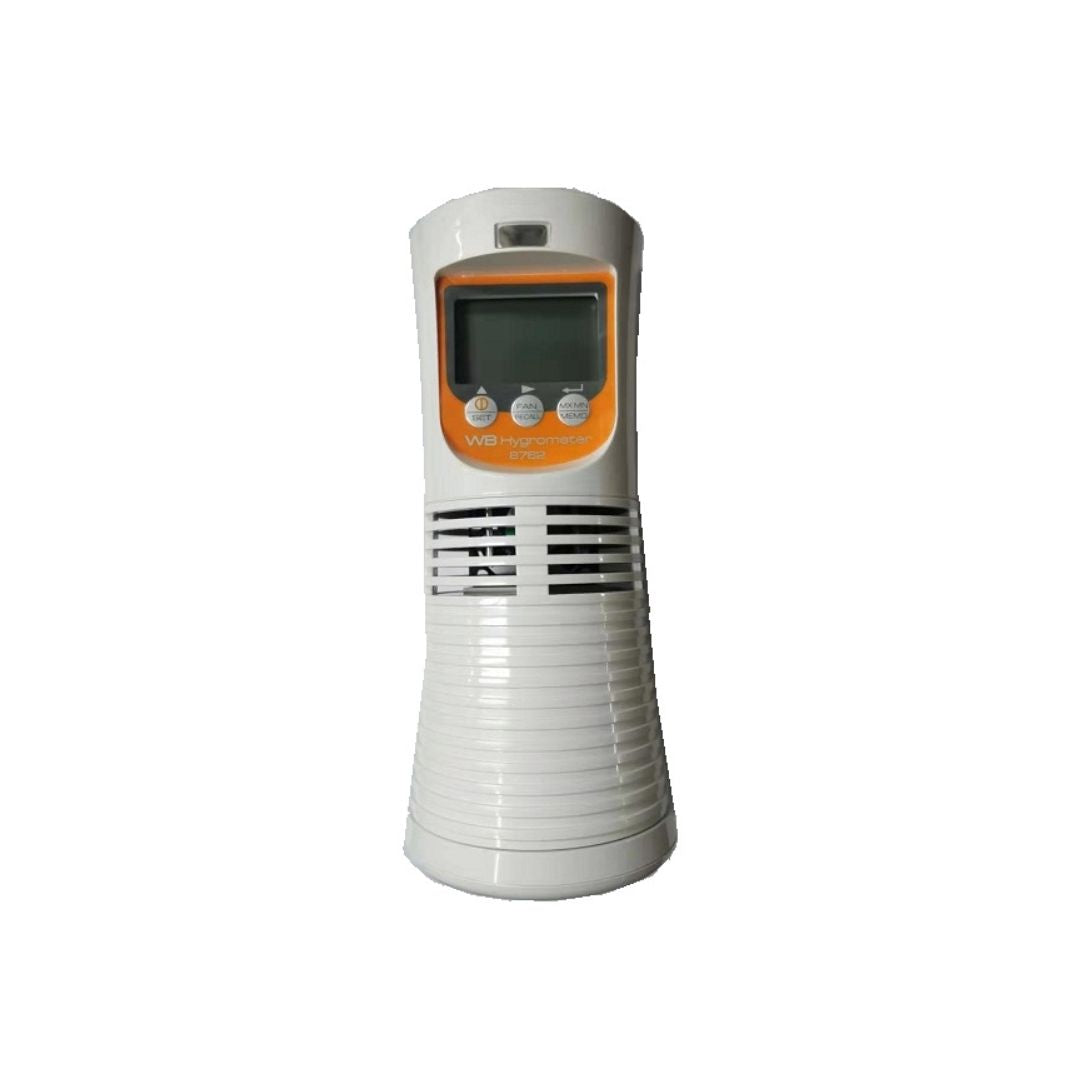

The AZ 8762 Humidity Meter features a large, easy-to-read LCD display, and two thermistor-type sensors in order to retrieve accurate and quick temperature and humidity readings.
Highlighted Features
-
Easy-to-read big LCD display
-
Designed with two Thermistor type sensors to get accurate and quick temperature & humidity readings by the dry bulb and wet bulb principle
-
Built-in fan to speed up the response time to 2 mins
-
Temperature and humidity high/low alarm setting is available
-
Temperature units C/F selectable
-
Dual-colour LED indicator for logging and alarm
-
Maximum/minimum, Hold functions
-
Relay output for ventilation control
-
Battery low indicator
-
100 points auto-logging memories
-
Auto-logging sampling rate switchable
-
Excellent for a greenhouse, high humidity, harsh and dusty environment
-
Condensation caused by water, pesticide, fertilizer spray, and dust scrap has a very limited effect on humidity reading
- Humidity self-calibration is not necessary
Applications
The 8762 AZ Psychrometer is designed with combined the traditional dry & wet bulb method and modern electronic circuit technology. There is no humidity sensor in the 8762 AZ Temperature Humidity Meter, so you don’t have to worry about condensation & dust scratch problems. The meter is powered by either 4pcs AAA batteries or a 5V adaptor. It is suggested to use an adaptor when doing long-time monitoring since the built-in fan is highly power-consuming.
The 8762 AZ Wet & Dry Bulb Hygrometer has a relay function, which could transfer the signal to control the other equipment (ex: ventilation control, water spray…).
Memory recall function of 8762 AZ Psychrometer to review all 100 readings records. It could be your best tool for a greenhouse or other high-humidity, harsh, and dusty environment.
Specifications
| Model | 8762 |
| Temperature Range | 5~50℃ |
| Temperature Resolution | 0.1℃, 0.1℉ |
| Temperature Accuracy | ±0.6℃ |
| Humidity Range | 0.1~99.9% RH |
| Humidity Resolution | 0.1% RH |
| Humidity Accuracy | ±3%RH (at 25℃ 10~100%RH); others ±5%RH |
| Response Time | 120 Seconds Typical |
| LCD Size (mm) | 40(L) * 25(W) mm |
| Memory | 100 points |
| Auto Logging | Manually Recall |
| Relay | YES |
| Operating Temperature | 5~50℃ |
| Operating RH% | Humidity ＜100% |
| Storage Temperature | 0~50℃ |
| Storage RH% | Humidity ＜80% |

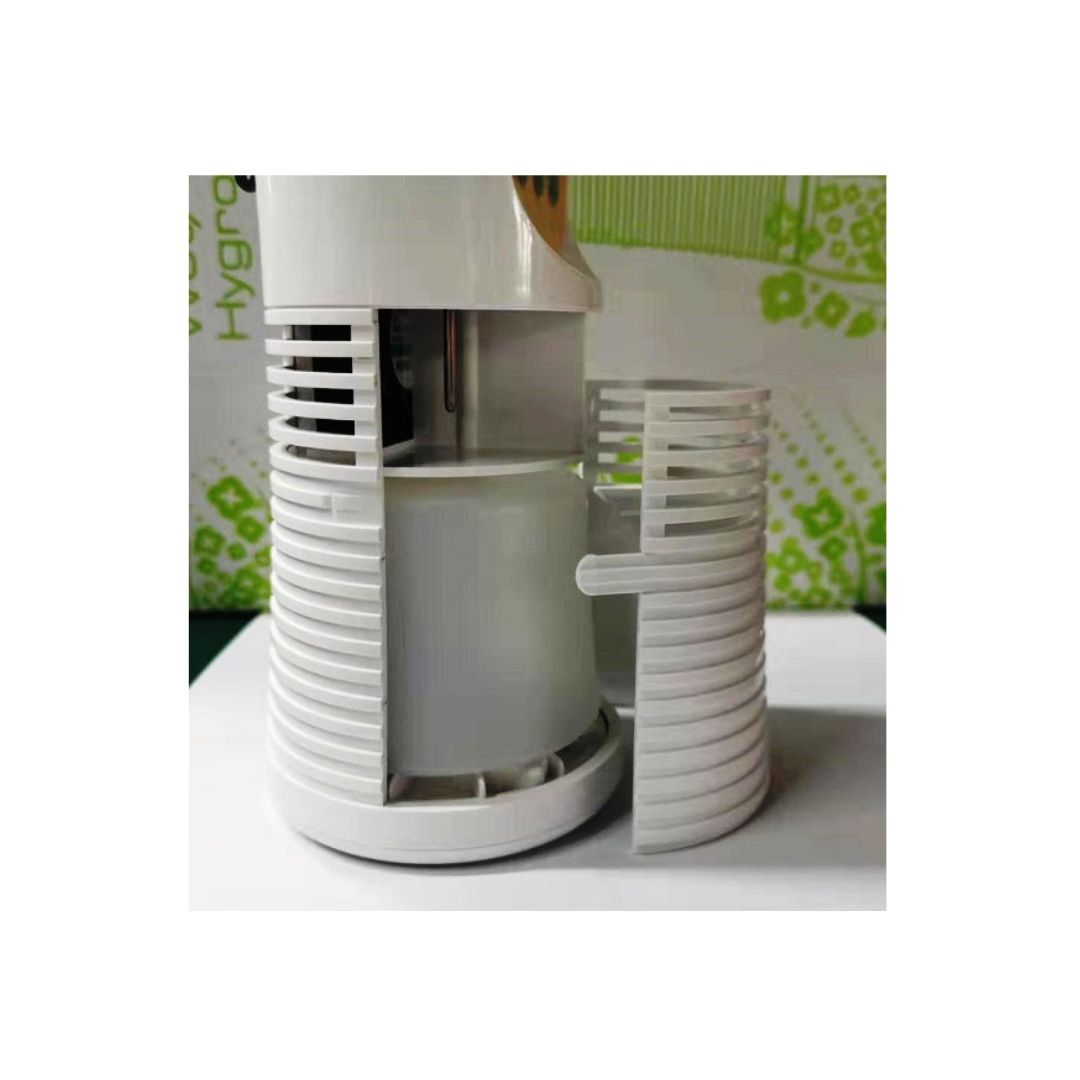

| Water Tank Refill Time | Every Two Weeks |
| Meter Size | 178.5(L) * 48.4(W) * 24.7(H) mm |
| Weight | ~250g |
| Battery | AAA * 4 PCS or 5V Adaptor |
| Standard Package | Meter, Water Tank, Batteries, Manual, Paper Box, Cotton Thread |
| Optional Accessory | 5V Universal Adaptor |
